繁體中文Reducing Bushings
As a leading manufacturer and supplier of Reducing Bushings, our company is dedicated to providing high-quality solutions for your piping and conduit systems. These bushings are essential components designed to connect pipes or conduit of different sizes, ensuring a smooth and secure transition. Whether used in industrial, commercial, or residential applications, our products are engineered to deliver reliable performance and durability.

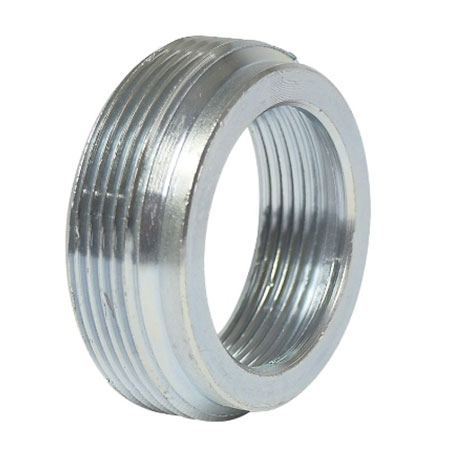

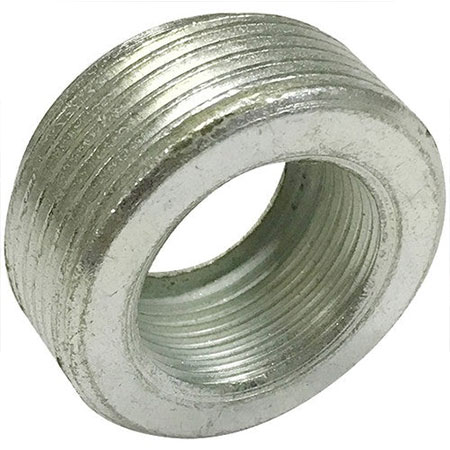

Reducing Bushings
Model - E4
Reducing Bushings
Reducing Bushings reduce the size conduit hubs; smooth and rounded integral bushing offers conductor protection. Fabricated from strong and long lasting steel or high grade malleable iron. Steel sizes from 1/2" by 3/8" to 2" by 11/2"; malleable iron available in sizes from 2 1/2" by 1" to 4" by 3 1/2".
Products are widely used in automobiles, ships, shipbuilding, electric power industry, electronic parts, mechanical engineering, railways, bridges, aviation and other fields.
Product Features
• Rounded bushing protects conductor
• NPT thread
Applications
• Dry location use only
• Use to reduce the entry size of a run of threaded conduit
Standard Material
• Steel
Standard Finish
• Zinc plated
Reducing Bushings reduce the size conduit hubs; smooth and rounded integral bushing offers conductor protection. Fabricated from strong and long lasting steel or high grade malleable iron. Steel sizes from 1/2" by 3/8" to 2" by 11/2"; malleable iron available in sizes from 2 1/2" by 1" to 4" by 3 1/2".
Products are widely used in automobiles, ships, shipbuilding, electric power industry, electronic parts, mechanical engineering, railways, bridges, aviation and other fields.
Product Features
• Rounded bushing protects conductor
• NPT thread
Applications
• Dry location use only
• Use to reduce the entry size of a run of threaded conduit
Standard Material
• Steel
Standard Finish
• Zinc plated
Ensuring they can withstand the rigors of demanding environments. These bushings are available in a variety of sizes and materials, making them versatile enough to meet the specific requirements of your projects. With a focus on precision and quality, our bushings provide a perfect fit, ensuring leak-free connections and optimal performance in every application.
As a trusted exporter of these components, we are committed to delivering products that meet the highest industry standards. Our rigorous quality control processes ensure that every bushing we produce is consistent in quality and reliability. With our extensive experience and dedication to customer satisfaction, we have established ourselves as a preferred partner for industries worldwide seeking dependable products.
Choose our
As a trusted exporter of these components, we are committed to delivering products that meet the highest industry standards. Our rigorous quality control processes ensure that every bushing we produce is consistent in quality and reliability. With our extensive experience and dedication to customer satisfaction, we have established ourselves as a preferred partner for industries worldwide seeking dependable products.
Choose our
Reducing Bushings
for your next project and experience the exceptional quality and service that set us apart. Our comprehensive product range, combined with our commitment to innovation and excellence, ensures that we can provide the ideal solution for your piping and conduit needs. Trust in our expertise and let us help you achieve success with our high-quality bushings, backed by the reputation that has made us a leader in Taiwan.Enquiry Now
Products List
Galvanized steel rigid conduit
Products are widely used in automobiles, ships, shipbuilding, electric power industry, electronic parts, mechanical engineering, railways, bridges, aviation and other fields.
Product Features
1.Manufactured to meet the specifications laid out in ANSI C80.1 and UL6.
2.Highest strength steel offers longetivity and value under the most demanding environments.
3.The heaviest and thickest walled conduit, yet posseses superior ductility for cutting, bending and welding.
4.Clean even interior facilitates smooth continuous raceways for easy wire pulling.
5.Hot Dipped Galvanised widely regarded as the most superior galvanising protection against corrosion.
6.Supplied precision threaded, with a thread protector on one end and a coupling on the other.
7.RMC is supplied in standard length of 10ft (3.05m). Available from 1/2″ to 6″.
8.RMC couplings, elbows and nipples are available from 1/2″ to 6″.
Application Advantages
RMC is manufactured to ensure absolute functionality in a variety of demanding environments. Be it indoor or outdoor, exposed or concealed, dry or wet locations. Or even in hazardous locations when in accordance with National Electric Code (NEC) Article 344.
1.Reusability for future additions or replacement of conduits.
2.Non-combustibility reduces hazard from fire.
3.Built-in grounding capabilities eliminate the need for supplemental grounding conductors.
4.Steel conduit acts as an Electromagnetic Interference (EMI) shield.

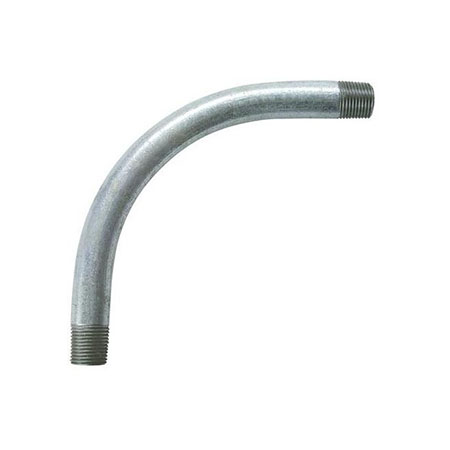

Galvanized Rigid Steel 90° Elbow
Products are widely used in automobiles, ships, shipbuilding, electric power industry, electronic parts, mechanical engineering, railways, bridges, aviation and other fields.
Product Features
1.Manufactured to meet the specifications laid out in ANSI C80.1 and UL6.
2.Highest strength steel offers longetivity and value under the most demanding environments.
3.The heaviest and thickest walled conduit, yet posseses superior ductility for cutting, bending and welding.
4.Clean even interior facilitates smooth continuous raceways for easy wire pulling.
5.Hot Dipped Galvanised widely regarded as the most superior galvanising protection against corrosion.
6. Galvanized Rigid Metal Elbows meet UL6 and ANSI C80.1
5" and 6" size Elbows available only in Rigid Galvanized Steel and Aluminum.
Stainless Steel 316 Elbows available upon request
11-1/4°, 15°, 22-1/2°, 30° and 60° Elbows also available
Application Advantages
RMC is manufactured to ensure absolute functionality in a variety of demanding environments. Be it indoor or outdoor, exposed or concealed, dry or wet locations. Or even in hazardous locations when in accordance with National Electric Code (NEC) Article 344.
1.Reusability for future additions or replacement of conduits.
2.Non-combustibility reduces hazard from fire.
3.Built-in grounding capabilities eliminate the need for supplemental grounding conductors.
4.Steel conduit acts as an Electromagnetic Interference (EMI) shield.
Galvanized Rigid Conduit (GRC) Finishing:
• Hot-dip galvanized for excellent corrosion resistance
• High strength ductile steel for long life and easy bending
• Listed to Safety Standard UL 6
• Manufactured in accordance with ANSI C80.1
• Available in sizes 1/2 (16) - 6 (155)
Outside Diameter Tolerance:
± 0.015 inch (0.38mm) for trade sizes 1/2" through 1-1/2"
± 1% for trade sizes 2" through 6"
Wall Thickness Tolerance:
± 12.5%
Length Tolerance:
± 0.25 inch (6.35mm)

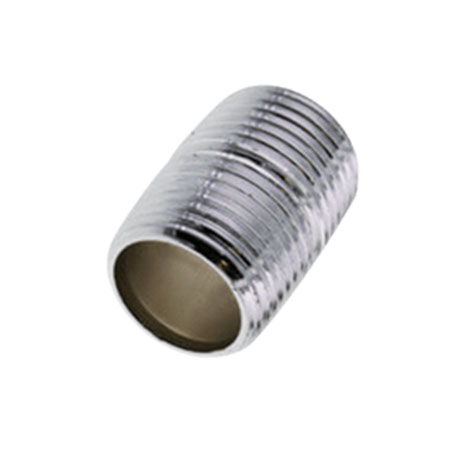

CONDUIT NIPPLES
Conduit Nipples are used to extend a length of threaded rigid or IMC conduit. Fabricated from rugged galvanized steel for low conductivity and high corrosion resistance and to ensure secure connections and preserve integrity and longevity. UL listed.
Products are widely used in automobiles, ships, shipbuilding, electric power industry, electronic parts, mechanical engineering, railways, bridges, aviation and other fields.
Product Features
• NPT thread
• High corrosion resistance
Applications
• Use to extend a length of threaded Rigid or IMC conduit Standard
UL certified
Material
• Galvanized steel
